CHASE ACT POST MOUNT DISC BRAKE KIT

ELEVN offers Disc Brake kit specially designed to be fitted on the CHASE ACT 1.0 and ACT 1.2 frames using Post Mount brake exclusively

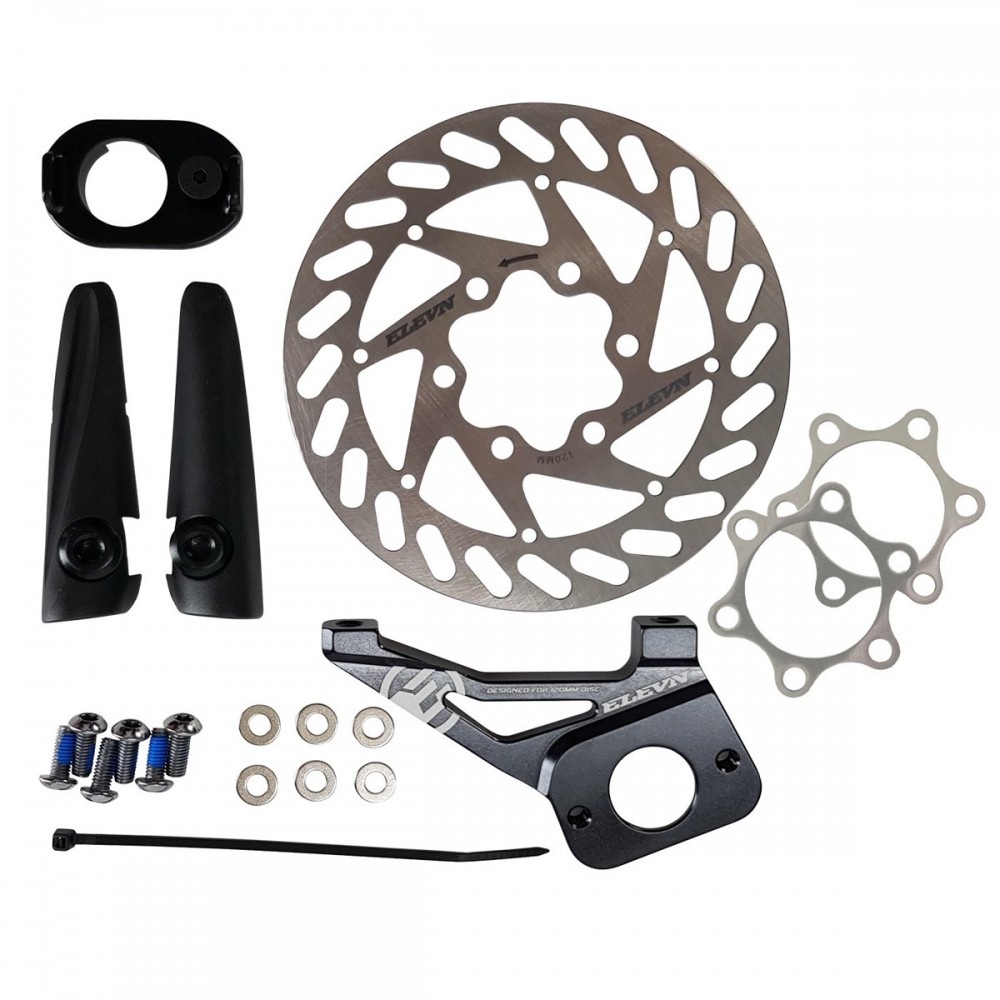

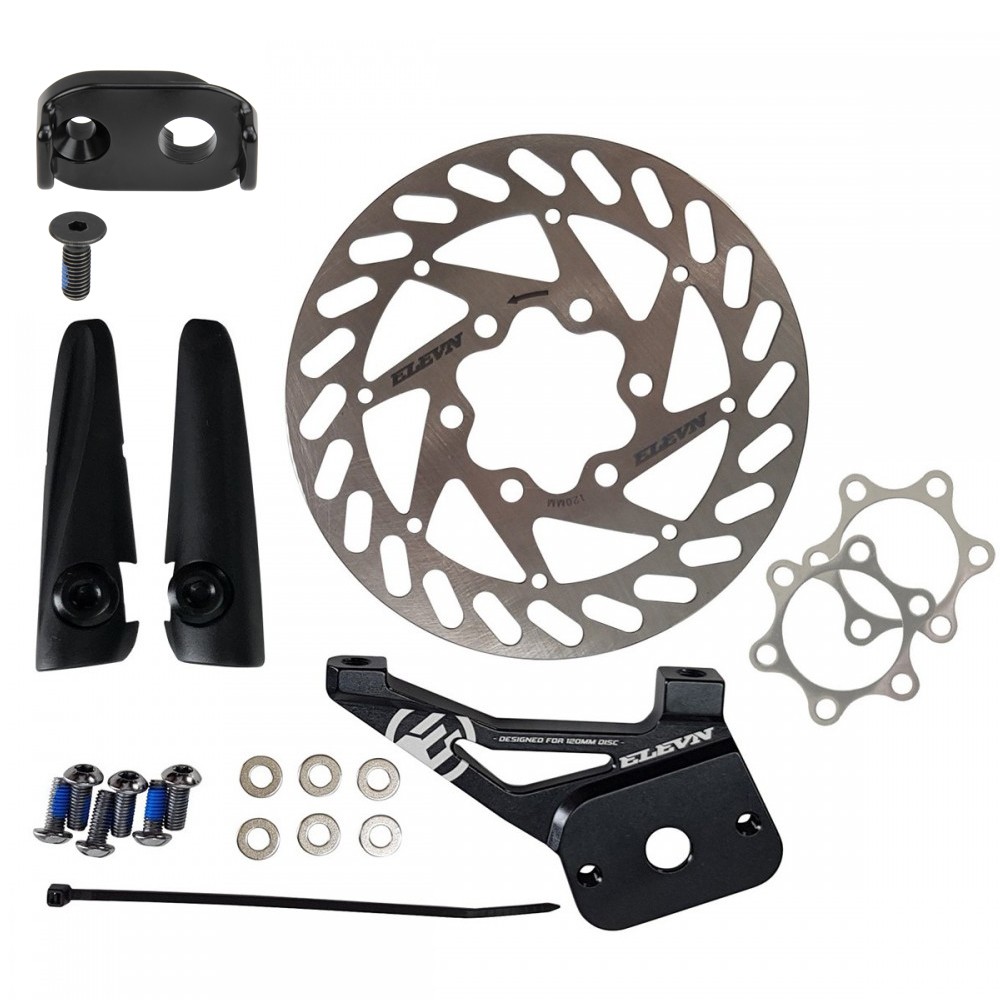

The Kit includes the following:

  • Full CNC Alloy Adaptor optimized for 120mm Disc Brake rotor diameter
  • For Post Mount mechanical or hydraulic rear disc brake bracket
  • Full CNC Chain Tensioner to work with adaptor (opposite side to the disc)
  • Options for both 10mm (3/8″) or 20mm rear axle set up
  • For 10mm or 20mm rear axle set up with pin bolt security
  • 120mm Disc Brake Rotor fastening system ISO 6 screws with air vents
  • Pin bolt security, 6 Disc screws and washers included
  • 2 disc spacers 0.5mm thickness each
  • 2 covers brake cleats to replace the standard brake mounts for a clean, aero design look.

Requires a rear hub disc ready set up with ISO 6 screw fastener
Work on Center Lock hubs with Center Lock adaptor
Sold without braking system

COMPATIBILITY:
CHASE ACT 1.0 and 1.2 frames only

These brake adaptors may work with other frames, but have not been tested at this time. Always check with your frame Manufacture first before installing a disc brake, as some frames may not be able to except the brake adaptors or they could cause damage to the frame and be unsafe.
