Chase RSP 5.0 Flat Mount Disc Brake kit

ELEVN offers Disc Brake kit specially designed to be fitted on the CHASE RSP 5.0 frames using Flat Mount brake exclusively

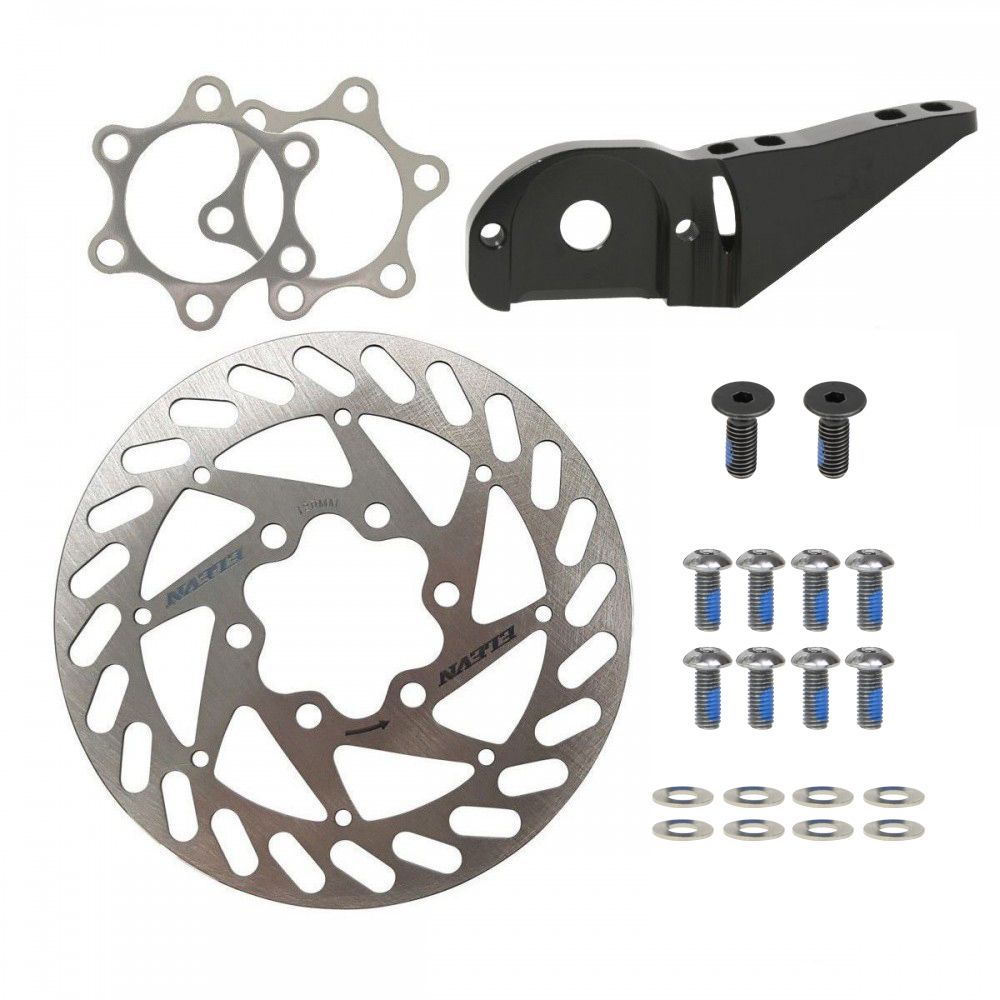

The Kit includes the following:
– Full CNC Alloy Adaptor optimized for 120mm or 140mm Disc Brake rotor diameters
– For Flat Mount mechanical or hydraulic rear disc brake bracket
– For 10mm rear axle set up
– 120mm Disc Brake Rotor fastening system ISO 6 screws with air vents
– 6 Disc screws and washers included
– 2 disc spacers 1mm and 0.5mm thickness

Requires a rear hub disc ready set up with ISO 6 screw fastener
Work on Center Lock hubs with Center Lock adaptor
Sold without braking system

COMPATIBILITY:
CHASE RSP 5.0 frames only

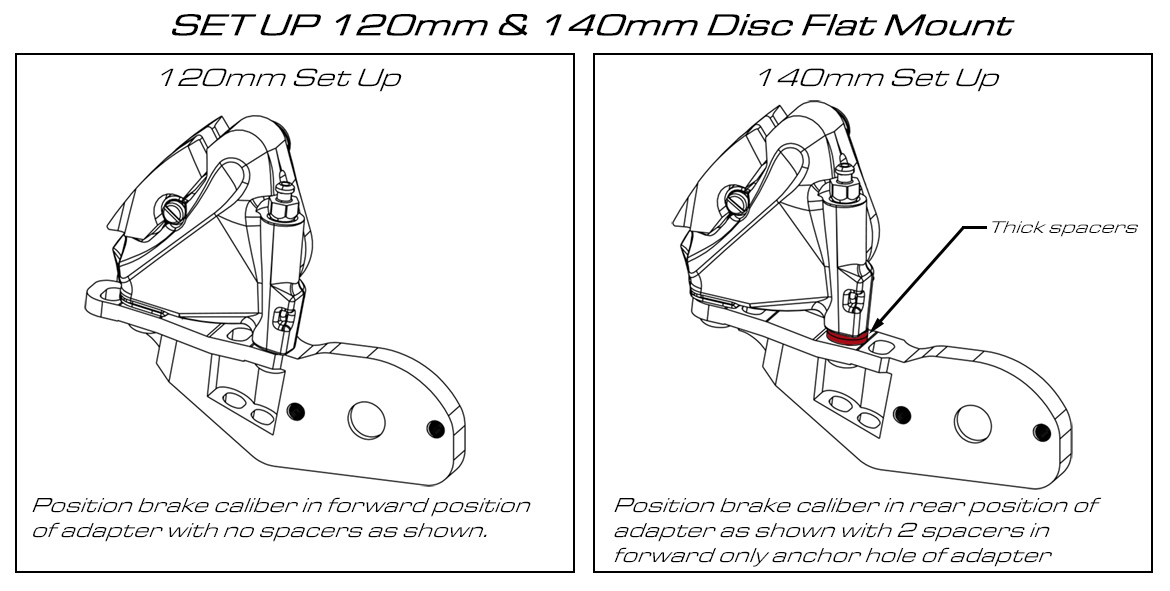

DOWNLOAD CHASE RSP 5.0 BRAKE SET UP NOTICE

These brake adaptors may work with other frames, but have not been tested at this time. Always check with your frame Manufacture first before installing a disc brake, as some frames may not be able to except the brake adaptors or they could cause damage to the frame and be unsafe.
